Dimensions

Below are the dimensions of our 2014 model.

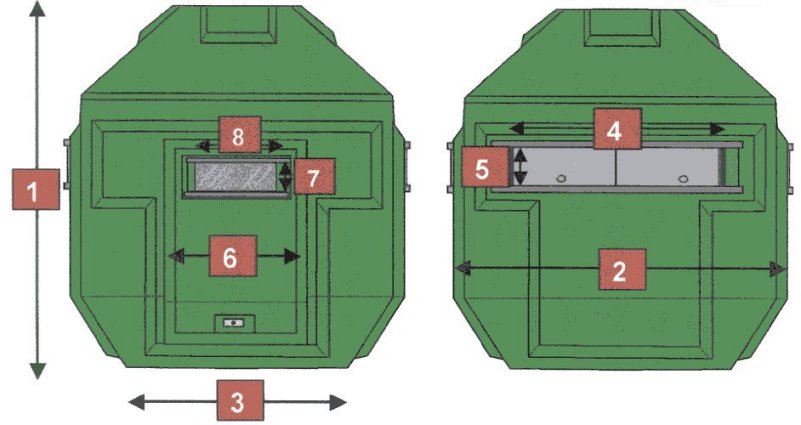

FRONT VIEW

RIGHT SIDE VIEW

blind dimensions





1. Inside Height
2. Inside Width
3. Inside Floor Width
4. Window Opening Width (3 sides)
5. Window Opening Height (3 sides)
6. Door Opening Width
7. Window Opening Height (door)
8. Window Opening Width (door)
9. Total Blind Weight (w/o tower)


74"
70"
48"
44"
8.3"
27"
7.5"
21"
190 lb.

 Double Blind Dimensions

 The base is 4'x6'

The width at the windows wide side to  wide side are- window to window 5'10''

The width at the windows narrow side to narrow side - window to window  7'10''

The height is 74''

The approx weight is 250lbs

 [ The only difference in the pot belly and double belly is we made it 24'' longer from the door to the opposite wall  and the wider wall has a larger window ] 3 windows instead of 2]
